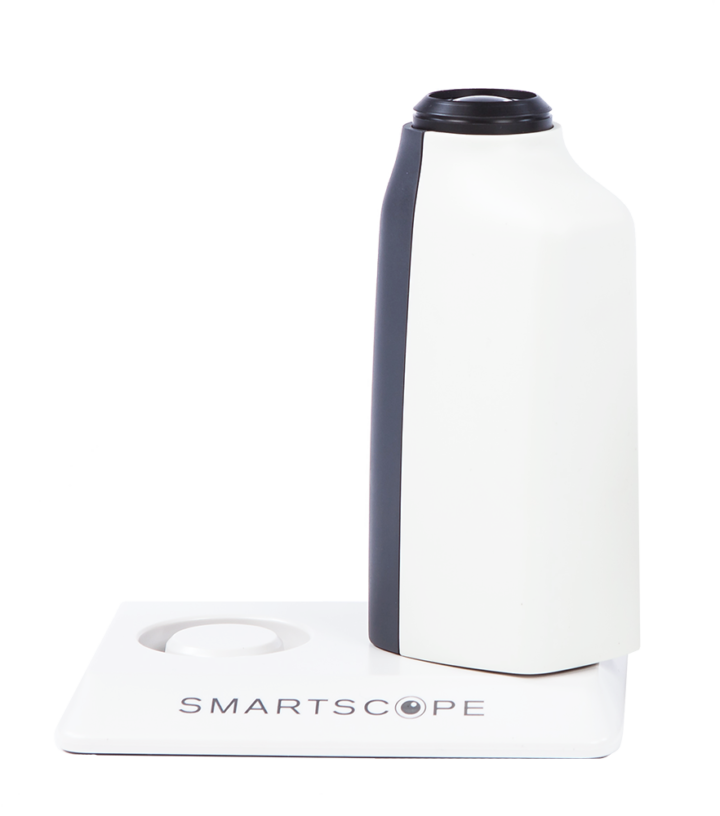

Smartscope PRO Retinal Module EY4

Smartscope® PRO camera with retinal module EY4 enables non-mydriatic eye fundus screening to detect the early signs of the most common retinal abnormalities, such as diabetic retinopathy, glaucoma and AMD. High-quality images fulfill ISO 10940 fundus camera standard. Smartscope PRO is equipped with 9 internal fixation targets for peripheral imaging. Wi-Fi enables easy image transfer to any mobile device.

With the Slit Lamp Adapter the camera can be fitted to any Slit Lamp with patient head rest to bring more stationary setup at the doctor’s office.

The Smartscope PRO comes with Patient Data Management software (sold separately) with full DICOM and PACS compliance to ensure seamless interoperability with hospital networks and practice management systems.

Type: Non-mydriatic digital fundus imaging
Field of view: 40 degrees
Optical resolution: > 60 lp/mm (ISO 10940:2009)
Fixation targets: 9 internal fixation targets for peripheral imaging (total FOV up to 70 x 52)
Focus range: Autofocus, -20D to +20D
Minimum pupil size: 3.5 mm
Dimensions: 67 (w) x 73 (h) x 160 (d) mm, 300 g
